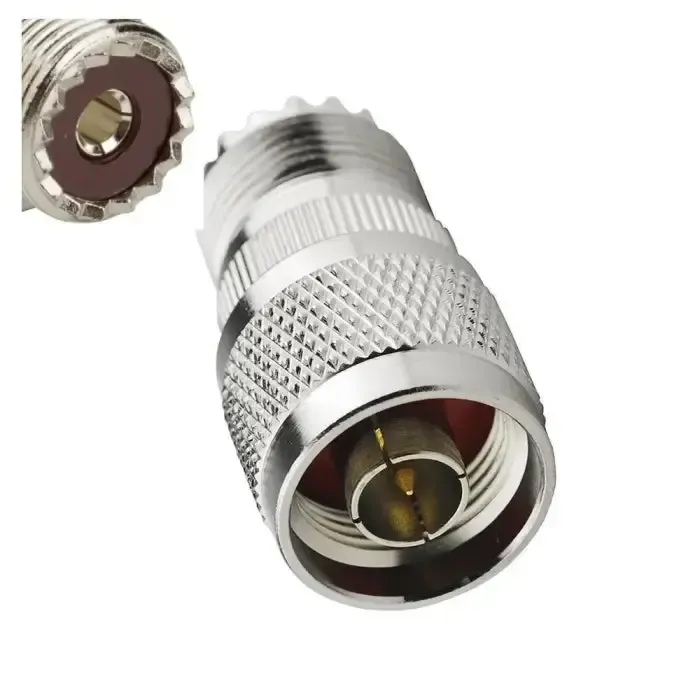

Type N-Male to SO-239 (UHF-Female) Coax Adapter
Connect your standard PL-259 coax cables to high-performance gear with this heavy-duty adapter. It converts a Type N-Female port (common on repeaters, diplexers, and high-end base station antennas) into a standard SO-239 (UHF-Female) socket.
This is the essential "bridge" adapter for ham radio operators who use commercial-grade antennas or equipment but want to use their existing standard RG58 or RG213 coaxial cables.
💡 Please Note: Sold as a Single Adapter
The product image may show the adapter from multiple angles for clarity. This item is sold as a single (1) adapter.
-
🔌
Connector 1: Type N-Male: A large, threaded connector with a center pin and weather-sealing gasket. Fits N-Female jacks found on base antennas and repeaters.
-
📡
Connector 2: SO-239 (UHF-Female): The standard "Mobile Ham / CB-style" socket. Accepts any standard PL-259 (UHF-Male) coax plug.
-
⚡️
Low Loss & High Quality: Made from nickel-plated brass with gold-plated contacts for maximum conductivity and signal integrity.
✅ Compatibility Check
This adapter is designed to screw onto a Type N-Female port.
Common Uses:
- Connecting a PL-259 cable to a base station antenna (e.g., Diamond X-Series)
- Connecting to a duplexer or repeater
- Adapting test equipment with N-connectors to standard ham coax
⚠️ NOT a TNC Connector
Please check your equipment carefully. This is a Type N adapter (large, approx. 5/8" diameter). It is NOT a TNC connector (which is much smaller, similar to BNC). It will not fit TNC ports found on some handhelds.
Technical Specifications
| Specification | Detail |
|---|---|
| Connector 1 (Device Side) | Type N-Male (Threaded, with Pin) |
| Connector 2 (Cable Side) | SO-239 (UHF-Female, accepts PL-259) |
| Impedance | 50 Ohm |
| Material | Nickel-plated brass / Gold-plated contact |
