SMA-Male to SO-239 (UHF-Female) Adapter for Icom / Yaesu / Kenwood & RT85

SMA-Male to SO-239 (UHF-Female) Adapter for Icom / Yaesu / Kenwood & RT85

This adapter is the key to unlocking the full potential of your Yaesu, Icom, or Retevis RT85 handheld. It solves the problem of how to connect your radio to a high-performance external antenna.

Designed specifically for radios with an SMA-Female antenna port (a port with a center hole), this adapter provides a secure SMA-Male (Center Pin) connection that converts your radio to a standard SO-239 socket. This allows you to plug in any standard PL-259 coaxial cable from a mag mount, base station, or mobile antenna.

  • 🔌

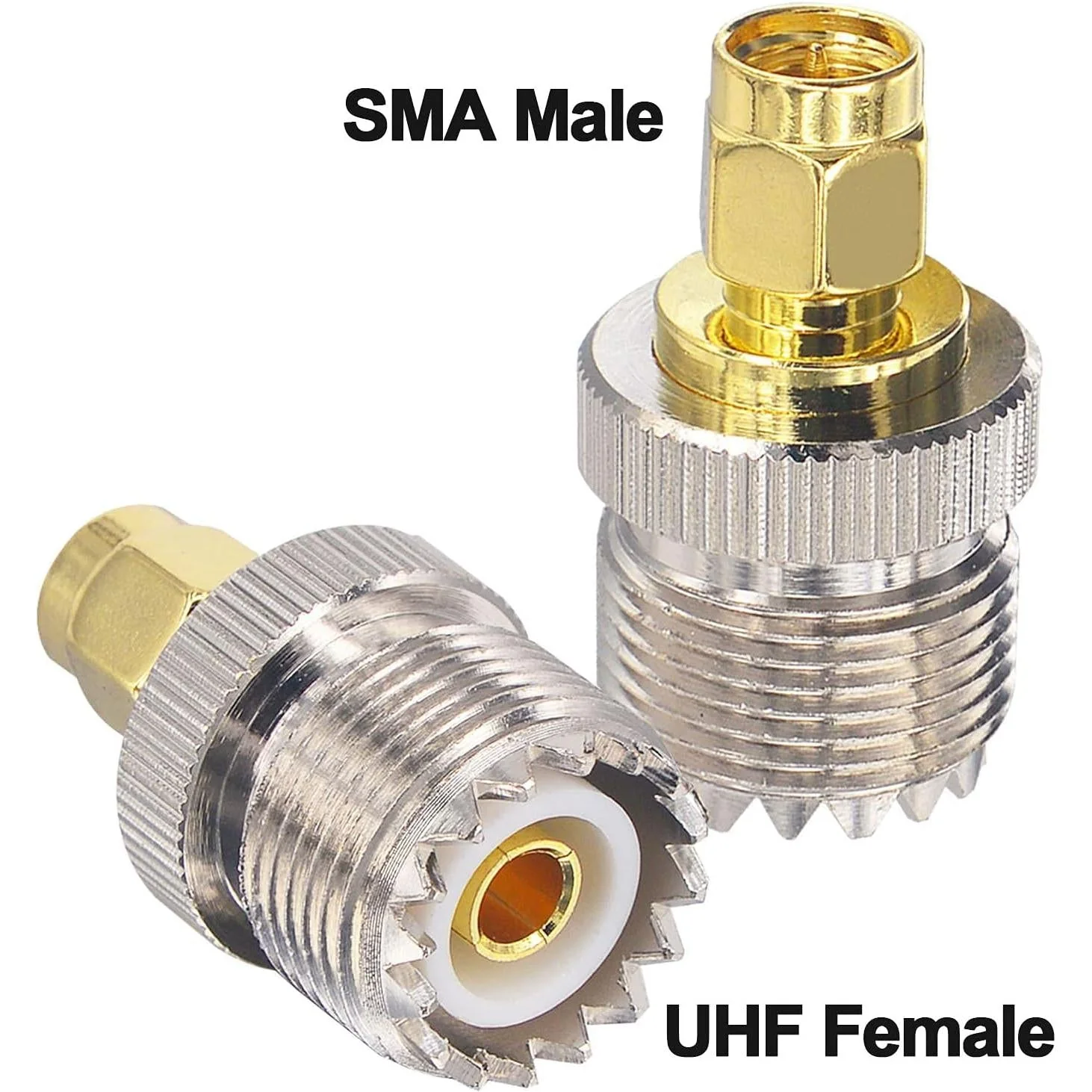

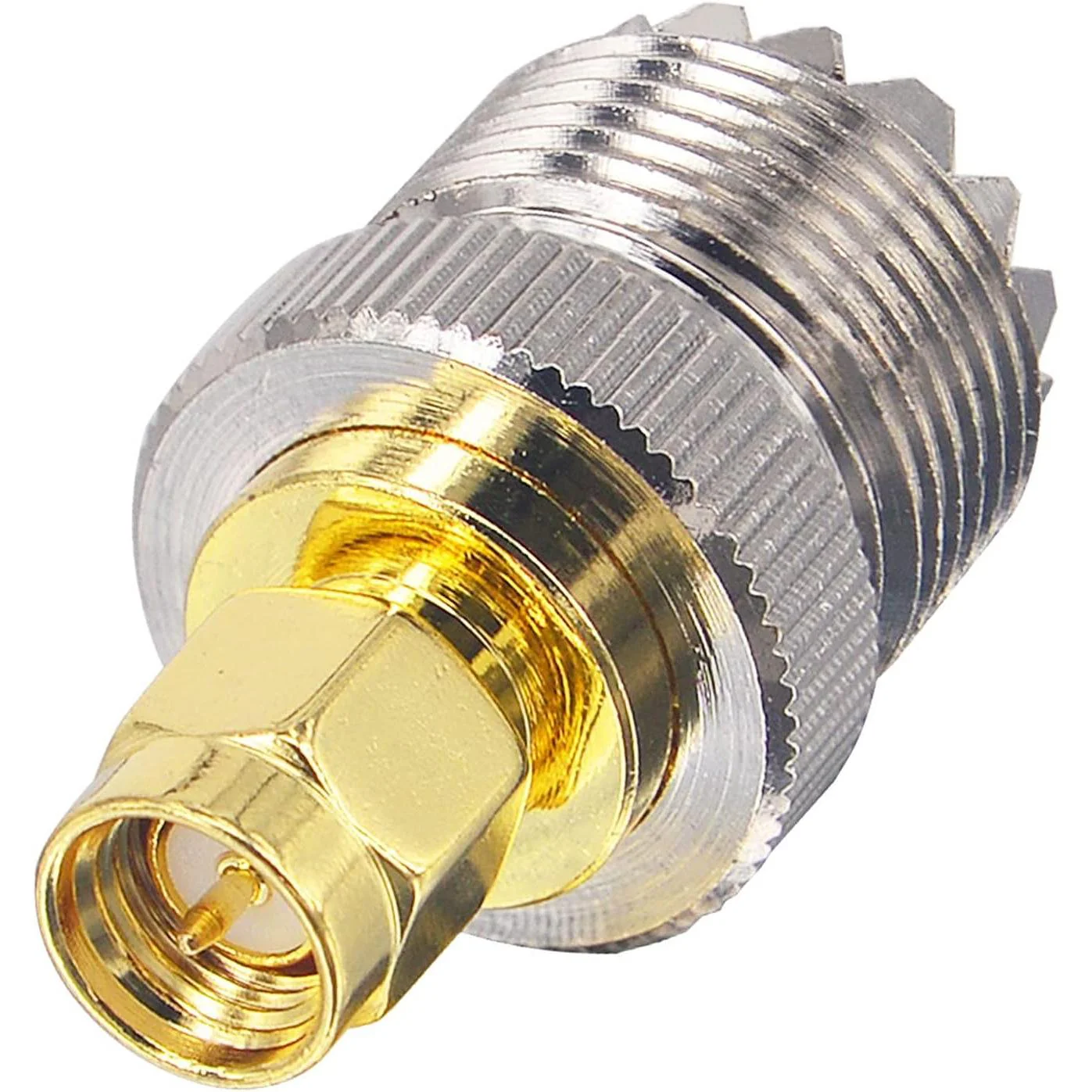

    Connector 1: SMA-Male (With Pin): Features threads on the *inside* and a center pin. Designed to screw onto radios that have a center hole.
  • 📡

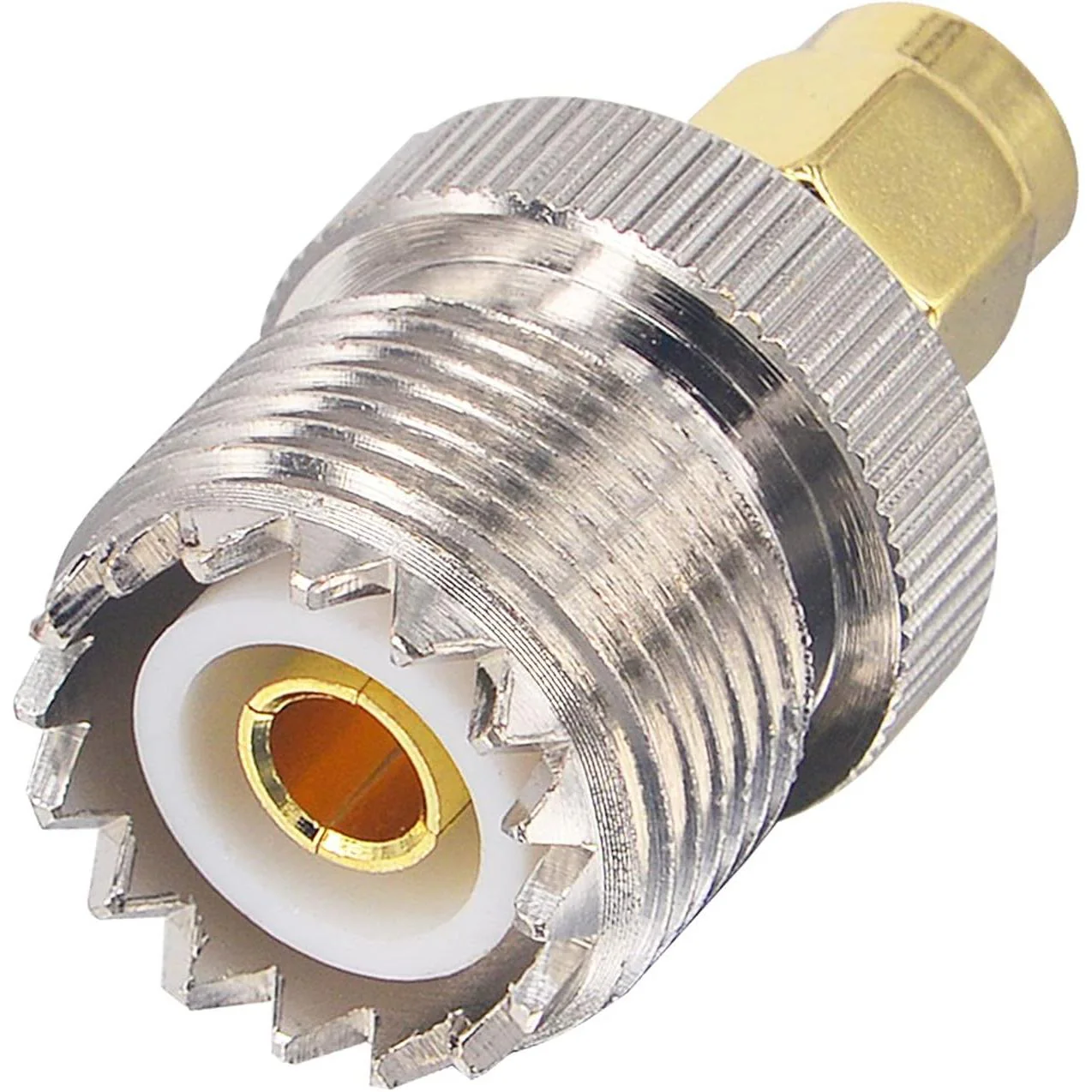

    Connector 2: SO-239 (UHF-Female): The standard connector for mobile and base antennas. Accepts any standard PL-259 plug.
  • 🌲
    Perfect for Logging Radios: This is the exact adapter needed to connect a Retevis RT85 to a magnetic mount antenna for use on logging roads.

✅ Compatibility Check: Fits Radios with a Center Hole

This adapter fits radios that have an SMA-Female jack (a hole in the center of the antenna connector).

Compatible Models Include:

  • Retevis: RT85, RA89
  • Yaesu: FT-60R, FT-70DR, VX-6R, FT-4XR, FT-65R & More
  • Icom: ID-51, ID-52 & More
  • Other: Most TYT and Wouxun handhelds (Check your Radio)

⚠️ DOES NOT FIT Baofeng UV-5R

This adapter does NOT fit the Baofeng UV-5R, UV-82, or Retevis RT5R. Those radios have a *pin* on the radio body and require the opposite (SMA-Female) adapter.

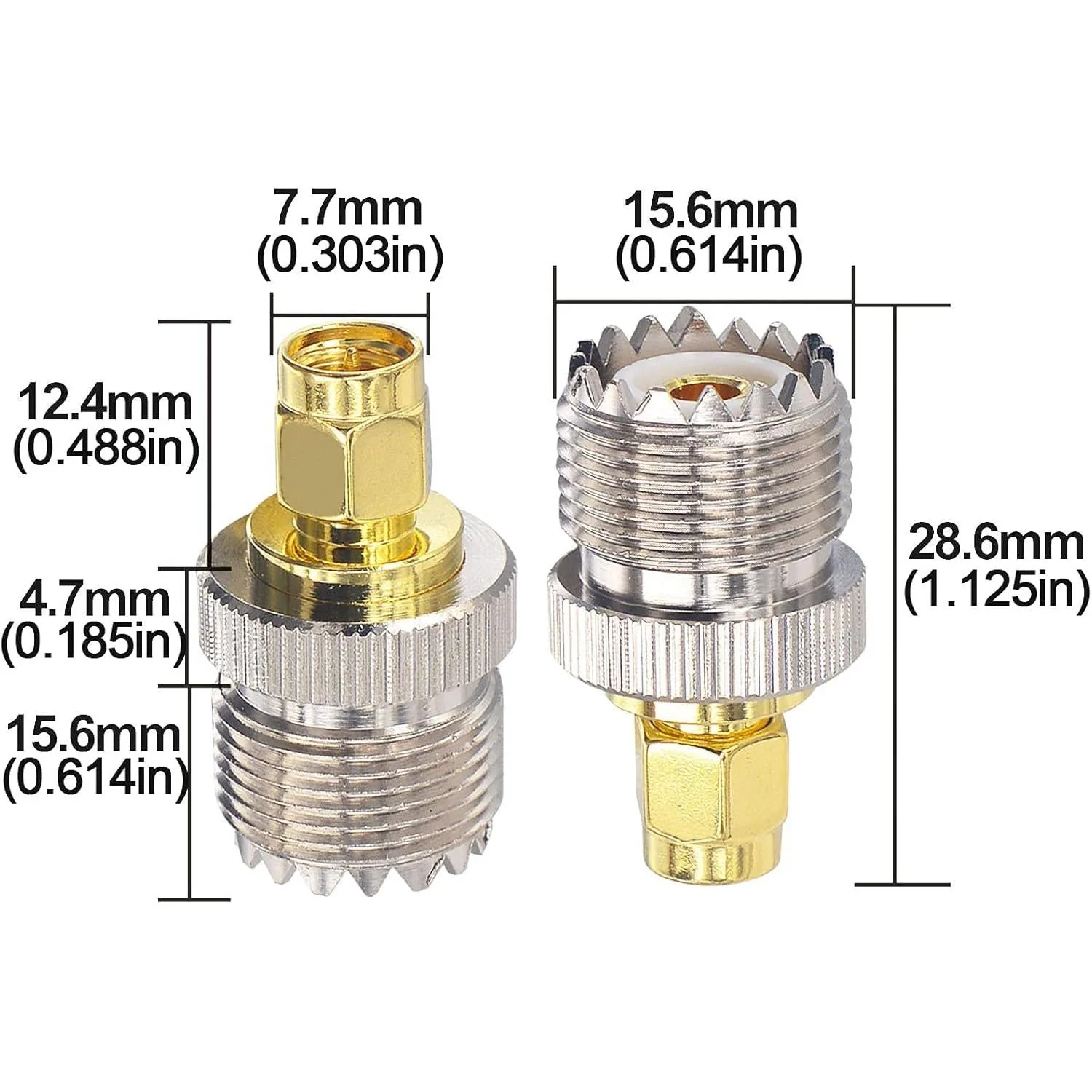

Technical Specifications

Specification Detail
Connector 1 (Radio Side) SMA-Male (Center Pin, Threads Inside)
Connector 2 (Coax Side) SO-239 (UHF-Female, accepts PL-259)
Impedance 50 Ohm
Material Nickel-plated brass / Gold-plated contact
