SMA-Female to BNC-Female Coax Adapter for Handheld Radios

SMA-Female to BNC-Female Coax Adapter for Handheld Radios

This high-quality adapter lets you connect a BNC-style antenna or cable to your Baofeng, Quansheng, or other handheld radio that uses an SMA-Male antenna port. It's the perfect solution for using a scanner antenna with your ham radio or connecting your HT to test equipment.

💡 Please Note: Sold as a Single Adapter

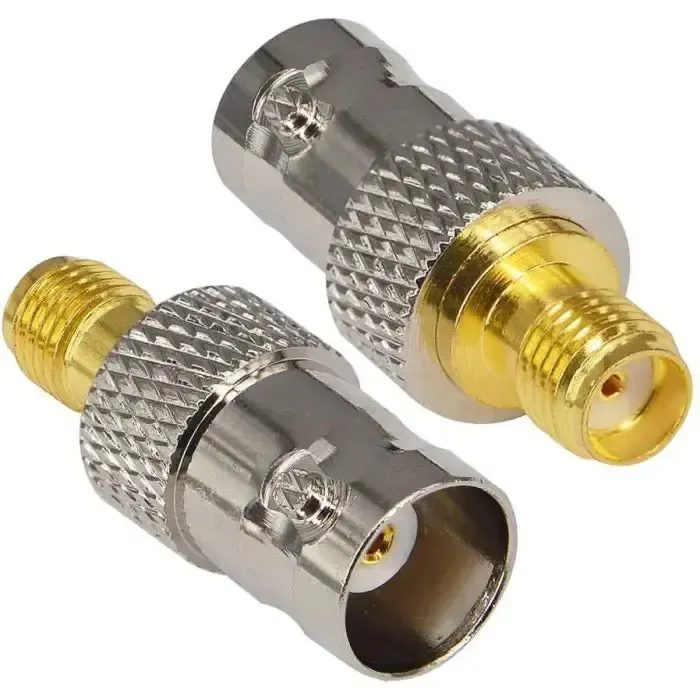

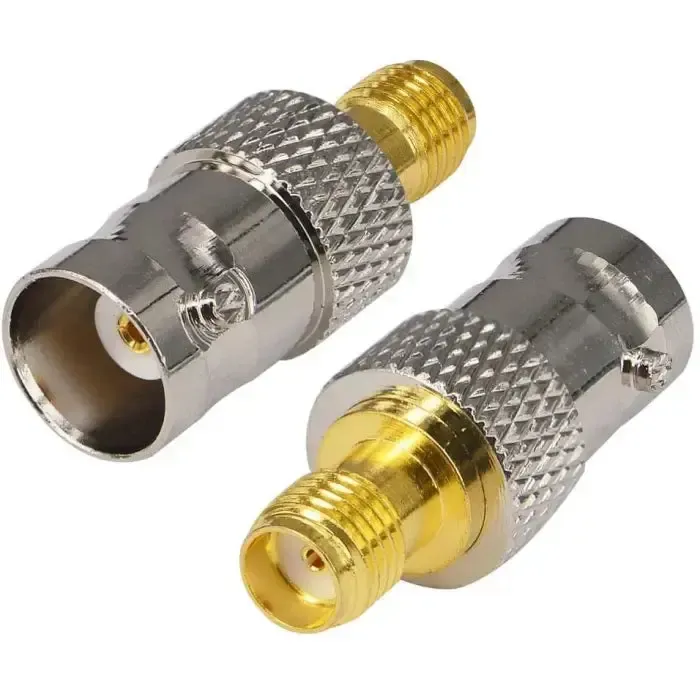

The main product image shows two adapters from different angles so you can see both connectors. This item is sold as a single (1) adapter.

  • 🔌
    Connector 1: SMA-Female: Features a center hole and threads on the *outside*. Designed to screw onto radios with a center pin.
  • 📡
    Connector 2: BNC-Female: The standard "twist-lock" connector found on most scanners. Accepts any BNC-Male plug.
  • 🛰️
    Connect to Scanner Antennas: Easily connect your Baofeng UV-5R or Quansheng UV-K5 to a high-gain BNC discone or scanner antenna.

✅ Fits Radios with a CENTER PIN (SMA-Male Port)

This adapter fits handheld radios that have an SMA-Male antenna port (a port with a center pin that is **flush** with the radio body).

Compatible Models Include:

  • Baofeng: UV-5R, UV-82, BF-F8HP
  • Quansheng: UV-K5, UV-K5(8)
  • Retevis: RT5R, RT1, RT2, RT8, RT81
  • Yaesu: FT-65R, FT-4XR

⚠️ Does NOT Fit Most Yaesu, Icom, or RT85

This adapter does NOT fit radios that have an SMA-Female port (a center hole that protrudes from the body). This includes most Yaesu (FT-60R), Icom, and some Retevis (RT85, RA89) models.

Technical Specifications

Specification Detail
Connector 1 (Radio Side) SMA-Female (Center hole, threads outside)
Connector 2 (Antenna Side) BNC-Female (Center hole, twist-lock)
Impedance 50 Ohm
Material Nickel-plated brass
$2.18

Original: $7.28

-70%
SMA-Female to BNC-Female Coax Adapter for Handheld Radios—

$7.28

$2.18

Product Information

Shipping & Returns

Description

This high-quality adapter lets you connect a BNC-style antenna or cable to your Baofeng, Quansheng, or other handheld radio that uses an SMA-Male antenna port. It's the perfect solution for using a scanner antenna with your ham radio or connecting your HT to test equipment.

💡 Please Note: Sold as a Single Adapter

The main product image shows two adapters from different angles so you can see both connectors. This item is sold as a single (1) adapter.

  • 🔌
    Connector 1: SMA-Female: Features a center hole and threads on the *outside*. Designed to screw onto radios with a center pin.
  • 📡
    Connector 2: BNC-Female: The standard "twist-lock" connector found on most scanners. Accepts any BNC-Male plug.
  • 🛰️
    Connect to Scanner Antennas: Easily connect your Baofeng UV-5R or Quansheng UV-K5 to a high-gain BNC discone or scanner antenna.

✅ Fits Radios with a CENTER PIN (SMA-Male Port)

This adapter fits handheld radios that have an SMA-Male antenna port (a port with a center pin that is **flush** with the radio body).

Compatible Models Include:

  • Baofeng: UV-5R, UV-82, BF-F8HP
  • Quansheng: UV-K5, UV-K5(8)
  • Retevis: RT5R, RT1, RT2, RT8, RT81
  • Yaesu: FT-65R, FT-4XR

⚠️ Does NOT Fit Most Yaesu, Icom, or RT85

This adapter does NOT fit radios that have an SMA-Female port (a center hole that protrudes from the body). This includes most Yaesu (FT-60R), Icom, and some Retevis (RT85, RA89) models.

Technical Specifications

Specification Detail
Connector 1 (Radio Side) SMA-Female (Center hole, threads outside)
Connector 2 (Antenna Side) BNC-Female (Center hole, twist-lock)
Impedance 50 Ohm
Material Nickel-plated brass
